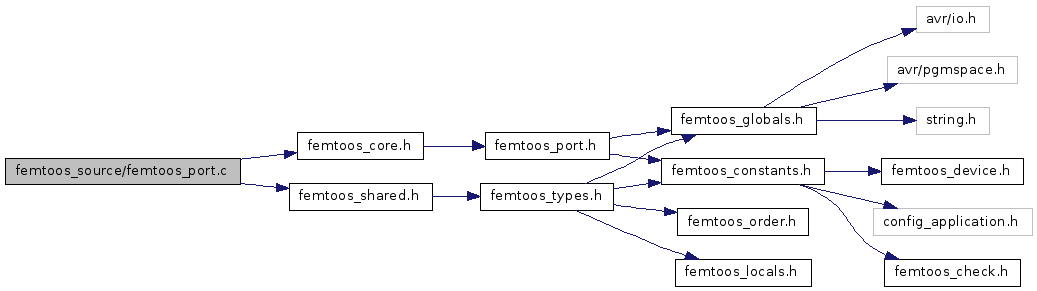

#include "femtoos_core.h"#include "femtoos_shared.h"Include dependency graph for femtoos_port.c:
Go to the source code of this file.
Defines | |
| #define | LoadTIMSK(rx) "in " #rx ", %[_TIMSKio_] \n\t" |
| #define | StoreTIMSK(rx) "out %[_TIMSKio_], " #rx " \n\t" |
| #define | CheckRegisterR1 "cpse r1,r30 \n\t" |
| #define | ClearRegisterR1 "clr r1 \n\t" |
| #define | FillRegisterR1 "" |
| #define | ReturnState(arg) "" |
| #define | ReturnField 0 |
| #define | SaveOsStatus(stat, save, key) |
| #define | RestoreOsStatus(stat, save) |
| #define | SaveGroup7b |
| #define | SaveGroup7a |
| #define | SaveGroup6 |
| #define | SaveGroup5 |
| #define | SaveGroup4 |
| #define | SaveGroup3 |
| #define | SaveGroup2 |
| #define | SaveGroup1 |
| #define | SaveGroup0 |
| #define | TestSaveGroup7 |
| #define | TestSaveGroup6 |
| #define | TestSaveGroup5 |
| #define | TestSaveGroup4 |
| #define | TestSaveGroup3 |
| #define | TestSaveGroup2 |
| #define | TestSaveGroup1 |
| #define | TestSaveGroup0 |
| #define | CheckGroup7 |
| #define | CheckGroup6 |
| #define | CheckGroup5 |
| #define | CheckGroup4 |
| #define | CheckGroup3 |
| #define | CheckGroup2 |
| #define | CheckGroup1 |
| #define | CheckGroup0 |
| #define | RestoreGroup7 |
| #define | RestoreGroup6 |
| #define | RestoreGroup5 |
| #define | RestoreGroup4 |
| #define | RestoreGroup3 |
| #define | RestoreGroup2 |
| #define | RestoreGroup1 |
| #define | RestoreGroup0 |
| #define | TestRestoreGroup7 |
| #define | TestRestoreGroup6 |
| #define | TestRestoreGroup5 |
| #define | TestRestoreGroup4 |
| #define | TestRestoreGroup3 |
| #define | TestRestoreGroup2 |
| #define | TestRestoreGroup1 |
| #define | TestRestoreGroup0 |
| #define | SkipFillGroup0 "rjmp 10f \n\t" |
| #define | TestFillGroup0 |
| #define | SkipRestoreGroup0 "rjmp 10f \n\t" |
| #define | FillGroup7 |
| #define | FillGroup6 |
| #define | FillGroup5 |
| #define | FillGroup4 |
| #define | FillGroup3 |
| #define | FillGroup2 |
| #define | FillGroup1 |
| #define | FillGroup0 |
Functions | |
| static void | portShortDelay (Tuint08 uiLoops) |
| For reporting errors it may be handy to have a function that delays the message for some time. | |
| void | portTrace (Tuint08 uiEvent) |
| The femto OS is capable of tracing its own and your functions. | |
| void | portShowError (Tuint08 uiMessage, Tuint08 uiCallId, Tuint08 uiInfoTask) |
| As long as you are developing, it is useful to keep track of errors that occur (in embedded devices we expect no errors during normal operation) Every error encountered is reported through a call to portShowError. | |
| void | portShowReset (void) |
| The startup code of the Femto OS contains a special call to show a reset took place, this is portShowReset(). | |

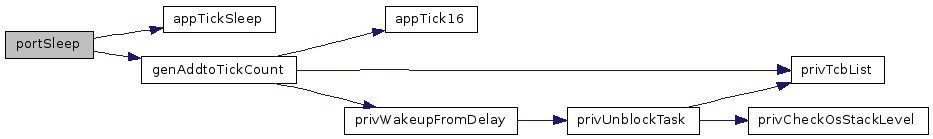

| void | portSleep (Tuint08 uiTickBlockMinDelay) |
| Besides the possibility to put the device in a power save mode during idle, the OS supports a low power sleep mode which can be entered for a longer period. | |
| void | portReboot (void) |
| void | portIdle (void) |
| Taddress | portInitContext (Taddress pTaskStart, Taddress pStackTop, Tuint08 uiRegisterCount, Tuint08 uiInterruptStart) |
| void | portSetupTimerInterrupt (void) |
| Specify a function that sets up your hardware so that tick interupts can take place. | |
| Tuint08 | portReadTimer (void) |
| Specify a function that returns the number of subticks passed from the subtick timer. | |
| Tbool | portCheckTimer (void) |
| Specify a function that returns true if the timer interrupt is due but has not yet been executed, and false otherwise. | |
| Tuint08 | portReadAndResetTimer (Tuint08 uiSubTickInterrupt) |
| Specify a function that returns the number of subticks passed from the subtick timer, and simultaneously resets the timer with a new interrupt time. | |

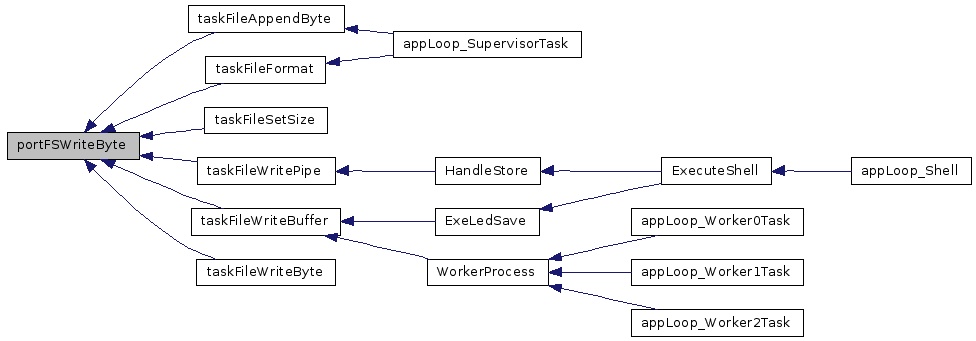

| void | portFSWriteByte (Taddress pAddress, Tbyte bValue) |
| Within this call you must save a byte on the file system at the given address. | |

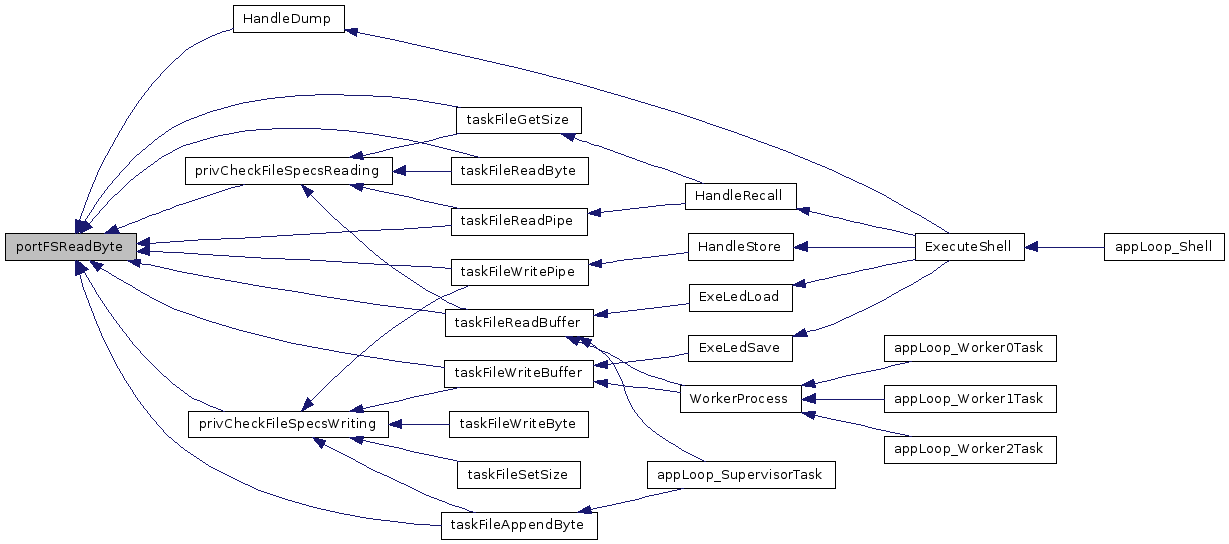

| Tbyte | portFSReadByte (Taddress pAddress) |
| Return the content of the given location in the file system. | |
| void | portEnterGlobalInterrupts (void) |
| void | portExitGlobalInterrupts (void) |
| void | portEnterTickInterrupts (void) |
| void | portExitTickInterrupts (void) |
| void | portDisableTickInterrupts (void) |
| void | portEnableTickInterrupts (void) |
| void | portEnterISR (void) |
| void | portBeginISR (void) |
| void | portReturnISR (void) |
| void | portYieldISR (void) |
| void | portSaveContext (void) |
| void | portRestoreContext (void) |
| #define CheckGroup0 |
Value:
CheckRegisterR1 \ "sbr r30,0x01 \n\t" \ "cpse r0,r29 \n\t" \ "sbr r30,0x01 \n\t" \ "cpse r2,r29 \n\t" \ "sbr r30,0x01 \n\t" \ "cpse r3,r29 \n\t" \ "sbr r30,0x01 \n\t"
Definition at line 1587 of file femtoos_port.c.
Referenced by portSaveContext().
| #define CheckGroup1 |
Value:
"cpse r4,r29 \n\t" \ "sbr r30,0x02 \n\t" \ "cpse r5,r29 \n\t" \ "sbr r30,0x02 \n\t" \ "cpse r6,r29 \n\t" \ "sbr r30,0x02 \n\t" \ "cpse r7,r29 \n\t" \ "sbr r30,0x02 \n\t"
Definition at line 1572 of file femtoos_port.c.
Referenced by portSaveContext().
| #define CheckGroup2 |
Value:
"cpse r8,r29 \n\t" \ "sbr r30,0x04 \n\t" \ "cpse r9,r29 \n\t" \ "sbr r30,0x04 \n\t" \ "cpse r10,r29 \n\t" \ "sbr r30,0x04 \n\t" \ "cpse r11,r29 \n\t" \ "sbr r30,0x04 \n\t"
Definition at line 1557 of file femtoos_port.c.
Referenced by portSaveContext().
| #define CheckGroup3 |
Value:
"cpse r12,r29 \n\t" \ "sbr r30,0x08 \n\t" \ "cpse r13,r29 \n\t" \ "sbr r30,0x08 \n\t" \ "cpse r14,r29 \n\t" \ "sbr r30,0x08 \n\t" \ "cpse r15,r29 \n\t" \ "sbr r30,0x08 \n\t"
Definition at line 1542 of file femtoos_port.c.
Referenced by portSaveContext().
| #define CheckGroup4 |
Value:
"cpse r16,r29 \n\t" \ "sbr r30,0x10 \n\t" \ "cpse r17,r29 \n\t" \ "sbr r30,0x10 \n\t" \ "cpse r18,r29 \n\t" \ "sbr r30,0x10 \n\t" \ "cpse r19,r29 \n\t" \ "sbr r30,0x10 \n\t"
Definition at line 1527 of file femtoos_port.c.
Referenced by portSaveContext().
| #define CheckGroup5 |
Value:
"cpse r20,r29 \n\t" \ "sbr r30,0x20 \n\t" \ "cpse r21,r29 \n\t" \ "sbr r30,0x20 \n\t" \ "cpse r22,r29 \n\t" \ "sbr r30,0x20 \n\t" \ "cpse r23,r29 \n\t" \ "sbr r30,0x20 \n\t"
Definition at line 1512 of file femtoos_port.c.
Referenced by portSaveContext().
| #define CheckGroup6 |
Value:
"cpse r24,r29 \n\t" \ "sbr r30,0x40 \n\t" \ "cpse r25,r29 \n\t" \ "sbr r30,0x40 \n\t" \ "cpse r26,r29 \n\t" \ "sbr r30,0x40 \n\t" \ "cpse r27,r29 \n\t" \ "sbr r30,0x40 \n\t"
Definition at line 1497 of file femtoos_port.c.
Referenced by portSaveContext().
| #define CheckGroup7 |
Value:
"lds r28,%[_r28_] \n\t" \ "cpse r28,r29 \n\t" \ "sbr r30,0x80 \n\t" \ "lds r28,%[_r29_] \n\t" \ "cpse r28,r29 \n\t" \ "sbr r30,0x80 \n\t" \ "lds r28,%[_r30_] \n\t" \ "cpse r28,r29 \n\t" \ "sbr r30,0x80 \n\t" \ "lds r28,%[_r31_] \n\t" \ "cpse r28,r29 \n\t" \ "sbr r30,0x80 \n\t"
Definition at line 1478 of file femtoos_port.c.
Referenced by portSaveContext().
| #define CheckRegisterR1 "cpse r1,r30 \n\t" |
Definition at line 1069 of file femtoos_port.c.
| #define ClearRegisterR1 "clr r1 \n\t" |
| #define FillGroup0 |
Value:
"mov r3,r2 \n\t" \ FillRegisterR1 \ "mov r0,r2 \n\t"
Definition at line 2170 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define FillGroup1 |
Value:
"mov r7,r2 \n\t" \ "mov r6,r2 \n\t" \ "mov r5,r2 \n\t" \ "mov r4,r2 \n\t"
Definition at line 2159 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define FillGroup2 |
Value:
"mov r11,r2 \n\t" \ "mov r10,r2 \n\t" \ "mov r9,r2 \n\t" \ "mov r8,r2 \n\t"
Definition at line 2148 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define FillGroup3 |
Value:
"mov r15,r2 \n\t" \ "mov r14,r2 \n\t" \ "mov r13,r2 \n\t" \ "mov r12,r2 \n\t"
Definition at line 2137 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define FillGroup4 |
Value:
"mov r19,r2 \n\t" \ "mov r18,r2 \n\t" \ "mov r17,r2 \n\t" \ "mov r16,r2 \n\t"
Definition at line 2126 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define FillGroup5 |
Value:
"mov r23,r2 \n\t" \ "mov r22,r2 \n\t" \ "mov r21,r2 \n\t" \ "mov r20,r2 \n\t"
Definition at line 2115 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define FillGroup6 |
Value:
"mov r27,r2 \n\t" \ "mov r26,r2 \n\t" \ "mov r25,r2 \n\t" \ "mov r24,r2 \n\t"
Definition at line 2104 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define FillGroup7 |
Value:
"mov r30,r2 \n\t" \ "mov r29,r2 \n\t" \ "mov r28,r2 \n\t"
Definition at line 2094 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define FillRegisterR1 "" |
Definition at line 1071 of file femtoos_port.c.
| #define LoadTIMSK | ( | rx | ) | "in " #rx ", %[_TIMSKio_] \n\t" |
Definition at line 677 of file femtoos_port.c.
Referenced by portDisableTickInterrupts(), portEnableTickInterrupts(), portEnterTickInterrupts(), portExitTickInterrupts(), portRestoreContext(), and portSaveContext().
| #define RestoreGroup0 |
Value:
"pop r3 \n\t" \ "pop r2 \n\t" \ "pop r1 \n\t" \ "pop r0 \n\t"
Definition at line 1996 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define RestoreGroup1 |
Value:
"pop r7 \n\t" \ "pop r6 \n\t" \ "pop r5 \n\t" \ "pop r4 \n\t"
Definition at line 1985 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define RestoreGroup2 |
Value:
"pop r11 \n\t" \ "pop r10 \n\t" \ "pop r9 \n\t" \ "pop r8 \n\t"
Definition at line 1974 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define RestoreGroup3 |
Value:
"pop r15 \n\t" \ "pop r14 \n\t" \ "pop r13 \n\t" \ "pop r12 \n\t"
Definition at line 1963 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define RestoreGroup4 |
Value:
"pop r19 \n\t" \ "pop r18 \n\t" \ "pop r17 \n\t" \ "pop r16 \n\t"
Definition at line 1952 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define RestoreGroup5 |
Value:
"pop r23 \n\t" \ "pop r22 \n\t" \ "pop r21 \n\t" \ "pop r20 \n\t"
Definition at line 1941 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define RestoreGroup6 |
Value:
"pop r27 \n\t" \ "pop r26 \n\t" \ "pop r25 \n\t" \ "pop r24 \n\t"
Definition at line 1930 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define RestoreGroup7 |
Value:
"pop r31 \n\t" \ "pop r30 \n\t" \ "pop r29 \n\t" \ "pop r28 \n\t"
Definition at line 1919 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define RestoreOsStatus | ( | stat, | |||
| save | ) |
Value:
"lds r31," #save " \n\t" /* Recall the original value of the uiOSstatus */\ "sts " #stat ", r31 \n\t"
Definition at line 1111 of file femtoos_port.c.
Referenced by portReturnISR(), and portYieldISR().
| #define ReturnField 0 |
| #define ReturnState | ( | arg | ) | "" |
| #define SaveGroup0 |
Value:
"push r0 \n\t" \ "push r1 \n\t" \ "push r2 \n\t" \ "push r3 \n\t"
Definition at line 1393 of file femtoos_port.c.
Referenced by portSaveContext().
| #define SaveGroup1 |
Value:
"push r4 \n\t" \ "push r5 \n\t" \ "push r6 \n\t" \ "push r7 \n\t"
Definition at line 1382 of file femtoos_port.c.
Referenced by portSaveContext().
| #define SaveGroup2 |
Value:
"push r8 \n\t" \ "push r9 \n\t" \ "push r10 \n\t" \ "push r11 \n\t"
Definition at line 1371 of file femtoos_port.c.
Referenced by portSaveContext().
| #define SaveGroup3 |
Value:
"push r12 \n\t" \ "push r13 \n\t" \ "push r14 \n\t" \ "push r15 \n\t"
Definition at line 1360 of file femtoos_port.c.
Referenced by portSaveContext().
| #define SaveGroup4 |
Value:
"push r16 \n\t" \ "push r17 \n\t" \ "push r18 \n\t" \ "push r19 \n\t"
Definition at line 1349 of file femtoos_port.c.
Referenced by portSaveContext().
| #define SaveGroup5 |
Value:
"push r20 \n\t" \ "push r21 \n\t" \ "push r22 \n\t" \ "push r23 \n\t"
Definition at line 1338 of file femtoos_port.c.
Referenced by portSaveContext().
| #define SaveGroup6 |
Value:
"push r24 \n\t" \ "push r25 \n\t" \ "push r26 \n\t" \ "push r27 \n\t"
Definition at line 1327 of file femtoos_port.c.
Referenced by portSaveContext().
| #define SaveGroup7a |
Value:
"lds r31,%[_r31_] \n\t" \ "push r28 \n\t" \ "push r29 \n\t" \ "push r30 \n\t" \ "push r31 \n\t"
Definition at line 1314 of file femtoos_port.c.
Referenced by portSaveContext().
| #define SaveGroup7b |
Value:
"lds r28,%[_r28_] \n\t" /* Load original value of register r28 */ \ "push r28 \n\t" /* Push it on the right place on the stack */ \ "lds r28,%[_r29_] \n\t" /* Load original value of register r29 */ \ "push r28 \n\t" /* Push it on the right place on the stack */ \ "lds r28,%[_r30_] \n\t" /* Load original value of register r30 */ \ "push r28 \n\t" /* Push it on the right place on the stack */ \ "lds r28,%[_r31_] \n\t" /* Load original value of register r31 */ \ "push r28 \n\t"
Definition at line 1303 of file femtoos_port.c.
Referenced by portSaveContext().
| #define SaveOsStatus | ( | stat, | |||
| save, | |||||
| key | ) |
Value:
"lds r31," #stat " \n\t" /* Load the uiOSstatus */\ "sts " #save ", r31 \n\t" /* Save that value in r31 background variable. */\ "ldi r31," #key " \n\t" /* Load the defContextStateIsr key */\ "sts " #stat ", r31 \n\t"
Definition at line 1105 of file femtoos_port.c.
Referenced by portBeginISR().
| #define SkipFillGroup0 "rjmp 10f \n\t" |
Definition at line 2073 of file femtoos_port.c.
| #define SkipRestoreGroup0 "rjmp 10f \n\t" |
| #define StoreTIMSK | ( | rx | ) | "out %[_TIMSKio_], " #rx " \n\t" |
Definition at line 678 of file femtoos_port.c.
Referenced by portDisableTickInterrupts(), portEnableTickInterrupts(), portEnterTickInterrupts(), portExitTickInterrupts(), portRestoreContext(), and portSaveContext().
| #define TestFillGroup0 |
Value:
"sbrc r0, 0 \n\t" \ "rjmp 0f \n\t"
Definition at line 2082 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define TestRestoreGroup0 |
Value:
"sbrs r0, 0 \n\t" \ "rjmp 0f \n\t"
Definition at line 2070 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define TestRestoreGroup1 |
Value:
"sbrs r0, 1 \n\t" \ "rjmp 1f \n\t"
Definition at line 2061 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define TestRestoreGroup2 |
Value:
"sbrs r0, 2 \n\t" \ "rjmp 2f \n\t"
Definition at line 2052 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define TestRestoreGroup3 |
Value:
"sbrs r0, 3 \n\t" \ "rjmp 3f \n\t"
Definition at line 2043 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define TestRestoreGroup4 |
Value:
"sbrs r0, 4 \n\t" \ "rjmp 4f \n\t"
Definition at line 2034 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define TestRestoreGroup5 |
Value:
"sbrs r0, 5 \n\t" \ "rjmp 5f \n\t"
Definition at line 2025 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define TestRestoreGroup6 |
Value:
"sbrs r0, 6 \n\t" \ "rjmp 6f \n\t"
Definition at line 2016 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define TestRestoreGroup7 |
Value:
"sbrs r0, 7 \n\t" \ "rjmp 7f \n\t"
Definition at line 2007 of file femtoos_port.c.
Referenced by portRestoreContext().
| #define TestSaveGroup0 |
Value:
"sbrs r31, 0 \n\t" \ "rjmp 0f \n\t"
Definition at line 1468 of file femtoos_port.c.
Referenced by portSaveContext().
| #define TestSaveGroup1 |
Value:
"sbrs r31, 1 \n\t" \ "rjmp 1f \n\t"
Definition at line 1459 of file femtoos_port.c.
Referenced by portSaveContext().
| #define TestSaveGroup2 |
Value:
"sbrs r31, 2 \n\t" \ "rjmp 2f \n\t"
Definition at line 1450 of file femtoos_port.c.
Referenced by portSaveContext().
| #define TestSaveGroup3 |
Value:
"sbrs r31, 3 \n\t" \ "rjmp 3f \n\t"
Definition at line 1441 of file femtoos_port.c.
Referenced by portSaveContext().
| #define TestSaveGroup4 |
Value:
"sbrs r31, 4 \n\t" \ "rjmp 4f \n\t"
Definition at line 1432 of file femtoos_port.c.
Referenced by portSaveContext().
| #define TestSaveGroup5 |
Value:
"sbrs r31, 5 \n\t" \ "rjmp 5f \n\t"
Definition at line 1423 of file femtoos_port.c.
Referenced by portSaveContext().
| #define TestSaveGroup6 |
Value:
"sbrs r31, 6 \n\t" \ "rjmp 6f \n\t"
Definition at line 1414 of file femtoos_port.c.
Referenced by portSaveContext().
| #define TestSaveGroup7 |
Value:
"sbrs r31, 7 \n\t" \ "rjmp 7f \n\t"
Definition at line 1405 of file femtoos_port.c.
Referenced by portSaveContext().
| void portBeginISR | ( | void | ) |
Definition at line 1182 of file femtoos_port.c.
References defContextStateIsr, ISRstackFirstByte, ISRstackLastByte, ISRstackSecondByte, ISRstackSPH, ISRstackSPL, ISRstackStart, ISRstackThirdByte, TosData::pxSave, TtaskSave::r31, SaveOsStatus, StackISR, uiOsStatus, and xOS.
| Tbool portCheckTimer | ( | void | ) |
Specify a function that returns true if the timer interrupt is due but has not yet been executed, and false otherwise.
If is, the method must also clear the flag so that this interrupt is not executed any more. Femto OS only calls this method with tick interrupts disabled.
Definition at line 564 of file femtoos_port.c.
References preBitIsSet, preBitSet1, and Tbool.
| void portDisableTickInterrupts | ( | void | ) |
| void portEnableTickInterrupts | ( | void | ) |
| void portEnterGlobalInterrupts | ( | void | ) |
Definition at line 872 of file femtoos_port.c.
| void portEnterISR | ( | void | ) |
Definition at line 1122 of file femtoos_port.c.
References defContextStateIsr, ISRstackFirstByte, ISRstackSecondByte, ISRstackStart, ISRstackThirdByte, StackISR, and uiOsStatus.
| void portEnterTickInterrupts | ( | void | ) |
| void portExitGlobalInterrupts | ( | void | ) |
Definition at line 907 of file femtoos_port.c.
| void portExitTickInterrupts | ( | void | ) |
| Tbyte portFSReadByte | ( | Taddress | pAddress | ) |
Return the content of the given location in the file system.
If needed, invert the byte before returning the value.
Definition at line 800 of file femtoos_port.c.
References Tuint08.
Referenced by HandleDump(), privCheckFileSpecsReading(), privCheckFileSpecsWriting(), taskFileAppendByte(), taskFileGetSize(), taskFileReadBuffer(), taskFileReadByte(), taskFileReadPipe(), taskFileWriteBuffer(), and taskFileWritePipe().
Here is the caller graph for this function:
| void portFSWriteByte | ( | Taddress | pAddress, | |
| Tbyte | bValue | |||
| ) |
Within this call you must save a byte on the file system at the given address.
At a file format the Femto FS writes zero's to all valid file locations. Due to the nature of the eeprom, it may be beneficial to invert the byte so that actually 0xFF is stored instead of 0xFF. If you do so, make sure you invert the byte at reading as well. Femto OS assumes this method is the only one writing bytes to the file system and that no other tasks call this method apart from the one that have been granted write access.
Definition at line 689 of file femtoos_port.c.
References preBitClr1, and preBitSet3.
Referenced by taskFileAppendByte(), taskFileFormat(), taskFileSetSize(), taskFileWriteBuffer(), taskFileWriteByte(), and taskFileWritePipe().
Here is the caller graph for this function:
| void portIdle | ( | void | ) |
Definition at line 388 of file femtoos_port.c.
References devSigTimerCompare(), preBitClr3, and preBitSet1.
Here is the call graph for this function:
| Taddress portInitContext | ( | Taddress | pTaskStart, | |
| Taddress | pStackTop, | |||
| Tuint08 | uiRegisterCount, | |||
| Tuint08 | uiInterruptStart | |||
| ) |
Definition at line 416 of file femtoos_port.c.
References cfgGlobSet, cfgTickSet, defInitCPUStatusRegister, defInitialInterruptAbsent, defInitialInterruptGetMask, Tuint08, and Tuint16.
| Tuint08 portReadAndResetTimer | ( | Tuint08 | uiSubTickInterrupt | ) |
Specify a function that returns the number of subticks passed from the subtick timer, and simultaneously resets the timer with a new interrupt time.
Femto OS only calls this method with tick interrupts disabled.
Definition at line 581 of file femtoos_port.c.
References cfgSysSubTicksPerFullTick, preBitSet1, privDisableGlobalInterrupts, privEnableGlobalInterrupts, and Tuint08.
Referenced by privWakeupFromLowPower().
Here is the caller graph for this function:
| Tuint08 portReadTimer | ( | void | ) |
Specify a function that returns the number of subticks passed from the subtick timer.
If there has been an unhandled tick interrupt the value must not be reset. Femto OS only calls this method with tick interrupts disabled.
Definition at line 540 of file femtoos_port.c.
References cfgSysSubTicksPerFullTick, preBitIsSet, and Tuint08.
Referenced by isrStartLoad(), and isrStopLoad().
Here is the caller graph for this function:
| void portReboot | ( | void | ) |
| void portRestoreContext | ( | void | ) |
Definition at line 2179 of file femtoos_port.c.
References cfgSysRegisterCheckByte, ClearRegisterR1, defCheckStackBit, defRet0, defRet1, FillGroup0, FillGroup1, FillGroup2, FillGroup3, FillGroup4, FillGroup5, FillGroup6, FillGroup7, LoadTIMSK, preBitClr1, preBitClr2, preBitSet1, TosData::pxSave, RestoreGroup0, RestoreGroup1, RestoreGroup2, RestoreGroup3, RestoreGroup4, RestoreGroup5, RestoreGroup6, RestoreGroup7, ReturnField, ReturnState, SkipRestoreGroup0, StoreTIMSK, TestFillGroup0, TestRestoreGroup0, TestRestoreGroup1, TestRestoreGroup2, TestRestoreGroup3, TestRestoreGroup4, TestRestoreGroup5, TestRestoreGroup6, TestRestoreGroup7, TtaskSave::uiRegisterUse, and xOS.
| void portReturnISR | ( | void | ) |
Definition at line 1229 of file femtoos_port.c.
References ISRstackLastByte, ISRstackSPH, ISRstackSPL, TosData::pxSave, TtaskSave::r31, RestoreOsStatus, StackISR, uiOsStatus, and xOS.
| void portSaveContext | ( | void | ) |
Definition at line 1601 of file femtoos_port.c.
References cfgSysRegisterCheckByte, CheckGroup0, CheckGroup1, CheckGroup2, CheckGroup3, CheckGroup4, CheckGroup5, CheckGroup6, CheckGroup7, defCheckStackBit, defContextStateSaveBit, LoadTIMSK, OSstackFirstByte, OSstackSecondByte, OSstackStart, OSstackThirdByte, TtaskSave::pcStackLevel, TtaskSave::pcStackOffset, preBitClr1, preBitSet1, TosData::pxSave, TtaskSave::r30, TtaskSave::r31, SaveGroup0, SaveGroup1, SaveGroup2, SaveGroup3, SaveGroup4, SaveGroup5, SaveGroup6, SaveGroup7a, SaveGroup7b, TosData::StackOS, StoreTIMSK, TestSaveGroup0, TestSaveGroup1, TestSaveGroup2, TestSaveGroup3, TestSaveGroup4, TestSaveGroup5, TestSaveGroup6, TestSaveGroup7, uiOsStatus, TtaskSave::uiRegisterUse, and xOS.
| void portSetupTimerInterrupt | ( | void | ) |
Specify a function that sets up your hardware so that tick interupts can take place.
The method should not activate the interrupts yet.
Definition at line 502 of file femtoos_port.c.
References cfgSysSubTicksPerFullTick, defTimerPrescaleBits, preBitClr1, preBitSet1, and preEqualMacros.
Referenced by main().
Here is the caller graph for this function:
| static void portShortDelay | ( | Tuint08 | uiLoops | ) | [static] |
For reporting errors it may be handy to have a function that delays the message for some time.
Implement it in this function.
Definition at line 159 of file femtoos_port.c.
References preBitClr1, preBitClr2, preBitIsClr, preBitSet1, and preEqualMacros.
Referenced by portShowError(), and portShowReset().
Here is the caller graph for this function:
| void portShowError | ( | Tuint08 | uiMessage, | |
| Tuint08 | uiCallId, | |||
| Tuint08 | uiInfoTask | |||
| ) |
As long as you are developing, it is useful to keep track of errors that occur (in embedded devices we expect no errors during normal operation) Every error encountered is reported through a call to portShowError.
uiMessage contains a 6 bit error message, and uiInfoTask contains (if appropriate) in the first nibble the slot/file or other info and in the last nibble the task number at which the error occurred. You are responsible to get the information off the chip, for example by letting some leds blink. Fatal errors are reported endlessly, non fatal will stop the current task and Femto OS tries to continue operations as far as possible. The system however may crash, hold or reset.
Definition at line 121 of file femtoos_port.c.
References portShortDelay(), and Tuint08.
Here is the call graph for this function:
| void portShowReset | ( | void | ) |
The startup code of the Femto OS contains a special call to show a reset took place, this is portShowReset().
Implement it so you can see a reset took place, for example by blinking some leds. This helps you in finding problems with your software since malicious code often gets into a reset loop.
Definition at line 198 of file femtoos_port.c.
References portShortDelay(), and Tuint08.
Here is the call graph for this function:
| void portSleep | ( | Tuint08 | uiTickBlockMinDelay | ) |
Besides the possibility to put the device in a power save mode during idle, the OS supports a low power sleep mode which can be entered for a longer period.
You are responsible for waking the device up, since this may be very device dependent. The uiTickBlockMinDelay specifies the number of tick blocks (1 tick block == 256 ticks) that can safely be slept without disturbing regular functions (maximum sleep time). This means that, if the low power sleep stays within that period, no delay task shall wakeup and all other tasks are in sleep mode, provided that cfgUseLowPowerOnDelay == cfgTrue. Otherwise, a sleep mode only comes when all tasks are indeed sleeping, and uiTickBlockMinDelay will be set to 0xFF (i.e. there is no minimum). Femto OS wakes all tasks if you exceeded the maximum sleep time if you set cfgUseLowPowerDelayRelease, otherwise, make sure you do not exceed the maximum sleep time. Please note that you remain responsible to adjust the tick timer yourself using genAddtoTickCount(). If you don't, Femto OS will not notice time has past and may try to go to sleep immediately. If you manually put tasks to sleep this may exactly be what you want however. The function must return.
Definition at line 221 of file femtoos_port.c.
References appTickSleep(), defCALL, defSleepDivider, defSleepInfinite, genAddtoTickCount(), preBitClr1, preBitClr2, preBitClr4, preBitIsSet, preBitSet1, preBitSet2, preBitSet4, Tuint08, and Tuint16.
Referenced by privEnterSleep().
Here is the call graph for this function:
Here is the caller graph for this function:
| void portTrace | ( | Tuint08 | uiEvent | ) |
The femto OS is capable of tracing its own and your functions.
All actions the OS takes are preceded (as early in the code as possible) with a portTrace(byte) call, where byte contains information of the trace point. Specify your code to get the uiEvent off the chip. This must be done as quickly as possible, for you must not uphold the device.
Definition at line 83 of file femtoos_port.c.
References preBitClr1, preBitIsClr, preBitIsSet, preBitSet1, and Tuint08.
| void portYieldISR | ( | void | ) |
Definition at line 1257 of file femtoos_port.c.
References ISRstackLastByte, ISRstackSPH, ISRstackSPL, portJump, TosData::pxSave, TtaskSave::r31, RestoreOsStatus, StackISR, taskYield(), uiOsStatus, and xOS.
Here is the call graph for this function:
1.5.2
